NC7WZ38K8X
Manufacturer:
On Semiconductor
Mfr.Part #:
NC7WZ38K8X
Datasheet:
Description:

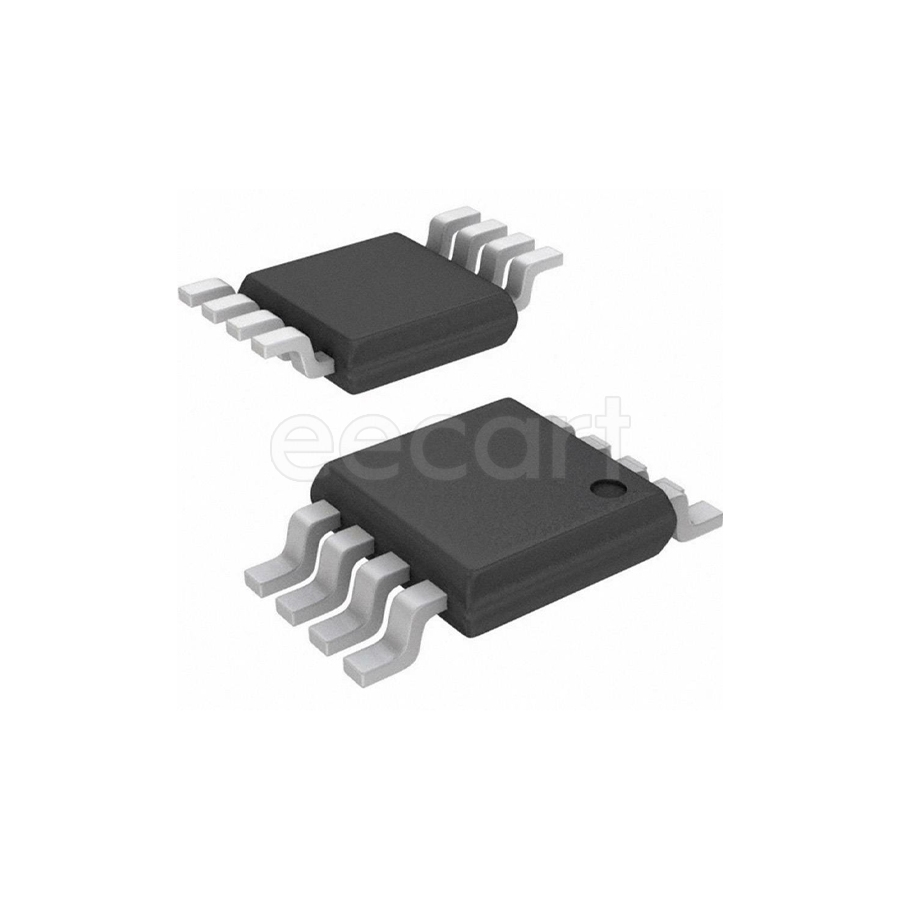

Logic Gates, Inverters VFSOP-8 SMD/SMT NAND NC7WZ Low Level Output Current:32 mA High Level Output Current:32 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Radiation Hardening | No |
| Number of Elements | 2 |
| Number of Circuits | 2 |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.65 V |
| Turn-On Delay Time | 9.2 ns |
| Quiescent Current | 1 µA |
| Propagation Delay | 9.6 ns |
| High Level Output Current | 32 mA |
| Low Level Output Current | 32 mA |
| Logic Function | NAND |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Gates | 2 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 months ago) |
| Packaging | Reel |
| RoHS | Compliant |
| Logic Family | NC7WZ |
Stock: 1646
Distributors
pcbx
pcbxUnit Price$0.44970
Ext.Price$0.44970
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44970 | $0.44970 |
| 10 | $0.38216 | $3.82160 |
| 50 | $0.31359 | $15.67950 |
| 100 | $0.25733 | $25.73300 |
| 500 | $0.20337 | $101.68500 |
| 1000 | $0.16073 | $160.73000 |
| 3000 | $0.09147 | $274.41000 |
| 5000 | $0.08013 | $400.65000 |
| 10000 | $0.07019 | $701.90000 |
